DSP45-12AZ-TRL | Littelfuse

Rectifier diode, 45 A, TO-268AA, DSP45-12AZ-TRL

Order No.: 74P3042
EAN: 4099891799076
MPN:
DSP45-12AZ-TRL
Series: DSP
DSP45-12AZ-TRL Littelfuse Rectifier Diodes

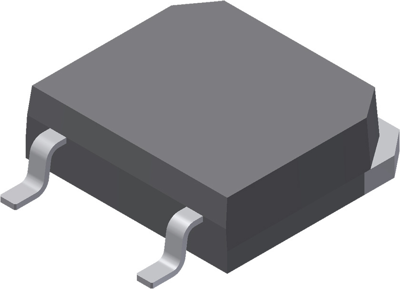

Image may differ
Unit Price (€ / pc.)
6.069 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
2,427.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
6.069 €

Phase leg, DSP45-12AZ-TRL, Littelfuse

The DSP45-12AZ-TRL is a phase leg diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Filter Property Value
Pulse power loss 270 W
Version standard recovery diode
Assembly SMD
Junction temperature (min.) -40 °C
Enclosure TO-268AA
min. operating temperature -40 °C
Junction temperature (max.) 175 °C
max. operating temperature 150 °C
Forward Current 45 A
Voltage V RRM (peak reverse voltage) 1200 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin KR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
