DSIK45-16AR | Littelfuse

Rectifier diode, 45 A, ISOPLUS247, DSIK45-16AR

Order No.: 74P3033
EAN: 4099891798987
MPN:
DSIK45-16AR
DSIK45-16AR Littelfuse Rectifier Diodes

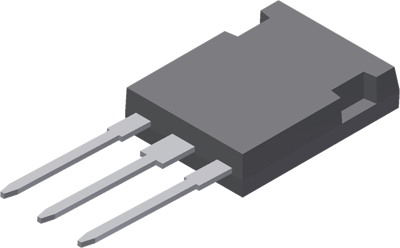

Image may differ
Unit Price (€ / pc.)
6.7235 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2,017.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
6.7235 €

Single diode, DSIK45-16AR, Littelfuse

The DSIK45-16AR is a single diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Assembly SMD
Enclosure ISOPLUS247
Pulse power loss 165 W
Forward Current 45 A
Version standard recovery diode
Junction temperature (max.) 175 °C
min. operating temperature -40 °C
Voltage V RRM (peak reverse voltage) 1600 V
max. operating temperature 150 °C
Junction temperature (min.) -40 °C
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
