DSI30-16AS-TRL | Littelfuse

Rectifier diode, 30 A, TO-263AB, DSI30-16AS-TRL

Order No.: 74P3027
EAN: 4099891798925
MPN:
DSI30-16AS-TRL
Series: DSI
DSI30-16AS-TRL Littelfuse Rectifier Diodes

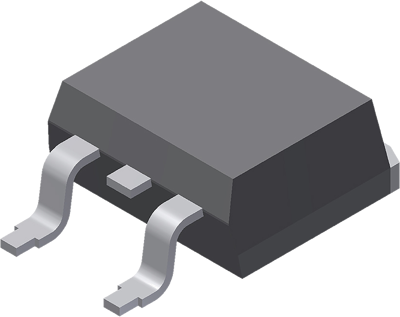

Image may differ
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2,075.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
2.5942 €

Single diode, DSI30-16AS-TRL, Littelfuse

The DSI30-16AS-TRL is a single diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Filter Property Value
Pulse power loss 160 W
Version standard recovery diode
Assembly SMD
Junction temperature (min.) -40 °C
Enclosure TO-263AB
min. operating temperature -40 °C
Junction temperature (max.) 175 °C
Number of diodes 1
max. operating temperature 150 °C
Forward Current 30 A
Voltage V RRM (peak reverse voltage) 1600 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin PH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
