DLA60I1200HA | Littelfuse

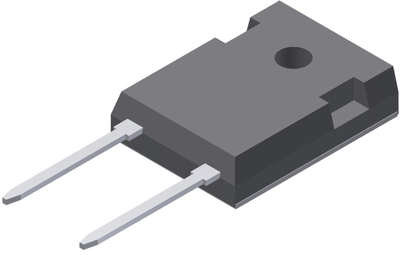

Low voltage diode, 60 A, TO-247AD, DLA60I1200HA
Unit Price (€ / pc.)
5.4978 € *
Standard delivery time from the manufacturer is: 17 Weeks
Diode, DLA60I1200HA, Littelfuse
Single diode with very low leakage current and a very low forward voltage drop, used for single and three phase bridge configurations.
Features
- Planar passivated chip
- Improved thermal behavior
- Industry convenient outline
- RoHS compliant
- Epoxy meets UL 94 V-0
Applications
- Diode for main rectification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 175 °C | |
| max. operating temperature | 150 °C | |
| Pulse power loss | 500 W | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Number of diodes | 1 | |
| Rated current | 70 A | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Forward Current | 60 A | |
| Junction temperature (min.) | -55 °C | |
| Enclosure | TO-247AD | |
| Version | low voltage diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
