DLA40IM800PC-TRL | Littelfuse

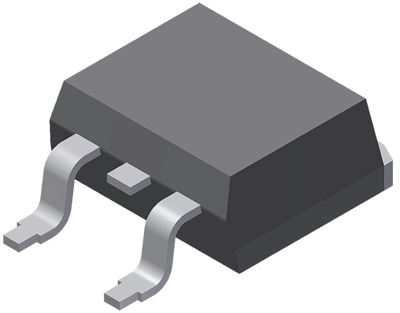

SMD rectifier diode, 40 A, TO-263AB, DLA40IM800PC-TRL
Order No.: 74P1222
EAN: 4099891780876
MPN:
DLA40IM800PC-TRL
Unit Price (€ / pc.)
3.2249 € *
Standard delivery time from the manufacturer is: 17 Weeks
Diode, DLA40IM800PC-TRL, Littelfuse
Single diode with very low leakage current and a very low forward voltage drop, used for single and three phase bridge configurations.
Features
- Planar passivated chip
- Improved thermal behavior
- Industry convenient outline
- RoHS compliant
- Epoxy meets UL 94 V-0
Applications
- Diode for main rectification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | TO-263AB | |
| Pulse power loss | 185 W | |
| Forward Current | 40 A | |
| Number of diodes | 1 | |
| Version | high-efficiency standard diode | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -55 °C | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| max. operating temperature | 150 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
