DLA100IM1200TZ-TUB | Littelfuse

Low voltage diode, 100 A, TO-268AAHV, DLA100IM1200TZ-TUB

Order No.: 74P1217
EAN: 4099891780821
MPN:
DLA100IM1200TZ-TUB
Series: DLA

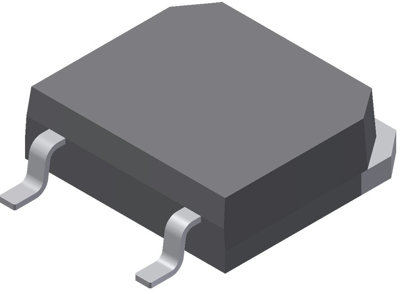

DLA100IM1200TZ-TUB Littelfuse Rectifier Diodes
Image may differ
Unit Price (€ / pc.)
6.3070 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
189.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
30 pcs.
6.3070 €

Diode, DLA100IM1200TZ-TUB, Littelfuse

Single diode with very low leakage current and a very low forward voltage drop, used for single and three phase bridge configurations.

Features

  • Planar passivated chip
  • Improved thermal behavior
  • Industry convenient outline
  • RoHS compliant
  • Epoxy meets UL 94 V-0
  • High creepage distance between terminals

Applications

  • Diode for main rectification
  • For single and three phase bridge configurations
Technical specifications
Filter Property Value
Pulse power loss 430 W
Version low voltage diode
Assembly SMD
Junction temperature (min.) -55 °C
Enclosure TO-268AAHV
Rated current 70 A
min. operating temperature -55 °C
Junction temperature (max.) 175 °C
Number of diodes 1
max. operating temperature 150 °C
Forward Current 100 A
Voltage V RRM (peak reverse voltage) 1200 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin KR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
