MITI-7-10-15 | Littelfuse
Reed switche, glass, PCB mounting, 1 Form A (N/O), 10 W, 170 V (DC), 0.25 A, MITI-7-10-15
Unit Price (€ / pc.)
1.9040 € *
Standard delivery time from the manufacturer is: 10 Weeks

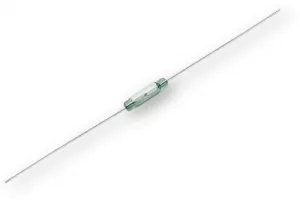

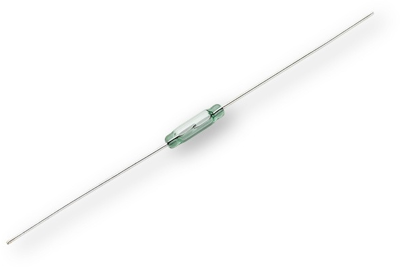

Reed switch, MITI-7-10-15, LITTELFUSE
The ultra-miniature reed switch is a normally open switch with a glass envelope that is capable of switching 170 VDC at 10 W. It has hermetically sealed switch contacts that are not affected by and have no effect on their external environment. Furthermore, there's zero operating power required for contact closure and is excellent for switching microcontroller logic level loads.
Features
- Very low space requirement
- RoHS compliant
Applications
- Position sensing
- Security
- Meter equipment
- Industrial controls
- Office equipment
- Telecoms
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | glass | |
| switching current | 0.25 A | |
| Latching switching function | 1 Form A (N/O) | |
| Contact resistance | 150 mΩ | |

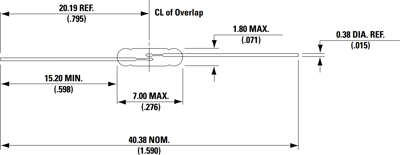

| diameter | 1.8 mm | |
| Switching Voltage (AC) | 120 V | |
| Breaking capacity | 10 W | |
| Length | 40.38 mm | |
| Switching Voltage (DC) | 170 V | |
| Connection | axial | |
| Product type | reed switche | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
