MDRR-DT-15-25-F | Littelfuse
Reed switche, glass, THT, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MDRR-DT-15-25-F
Unit Price (€ / pc.)
3.8794 € *
Standard delivery time from the manufacturer is: 21 Weeks

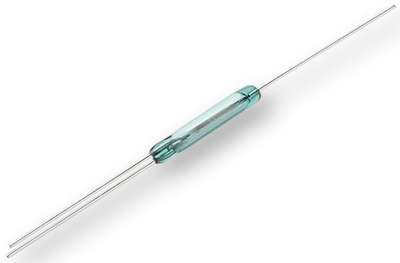

Reed switch, MDRR-DT-15-25-F, LITTELFUSE
A miniature changeover switch with a glass envelope, capable of switching 175 VDC at 5 W. It has hermetically sealed switch contacts that are not affected by and have no effect on their external environment. Furthermore, there's zero operating power required for contact closure and is excellent for switching microcontroller logic level loads.
Applications
- Position sensing
- Reed relays
- Industrial controls
- Office equipments
- Home appliances
- Security

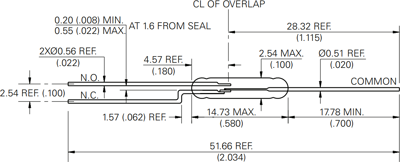

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | glass | |
| switching current | 0.25 A | |
| Latching switching function | 1 Form C (NO/NC) | |
| Contact resistance | 100 mΩ | |
| diameter | 2.54 mm | |
| Switching Voltage (AC) | 120 V | |
| Breaking capacity | 5 W | |
| Length | 51.66 mm | |
| Switching Voltage (DC) | 175 V | |
| Connection | axial | |
| Product type | reed switche | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365007 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
