MDRR-DT-10-15-U | Littelfuse
Reed switche, glass, PCB mounting, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MDRR-DT-10-15-U
Unit Price (€ / pc.)
3.8080 € *
Standard delivery time from the manufacturer is: 23 Weeks

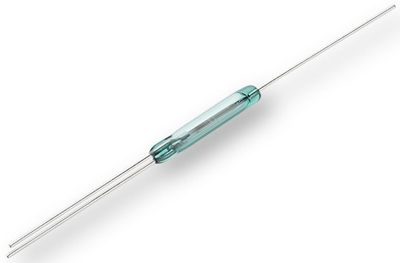

Reed switch, MDRR-DT-10-15-U, LITTELFUSE
A miniature changeover switch with a glass envelope, capable of switching 175 VDC at 5 W. It has hermetically sealed switch contacts that are not affected by and have no effect on their external environment. Furthermore, there's zero operating power required for contact closure and is excellent for switching microcontroller logic level loads.
Applications
- Position sensing
- Reed relays
- Industrial controls
- Office equipments
- Home appliances
- Security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 120 V | |
| Connection | axial | |
| Contact resistance | 100 mΩ | |
| Latching switching function | 1 Form C (NO/NC) | |
| Switching Voltage (DC) | 175 V | |
| Length | 52.48 mm | |
| Assembly | PCB mounting | |
| diameter | 2.54 mm | |
| switching current | 0.25 A | |
| Breaking capacity | 5 W | |
| Version | glass | |
| Product type | reed switche |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
