MDRR-DT-10-15-F | Littelfuse
Reed switche, glass, THT, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MDRR-DT-10-15-F
Unit Price (€ / pc.)
3.7366 € *
Standard delivery time from the manufacturer is: 23 Weeks

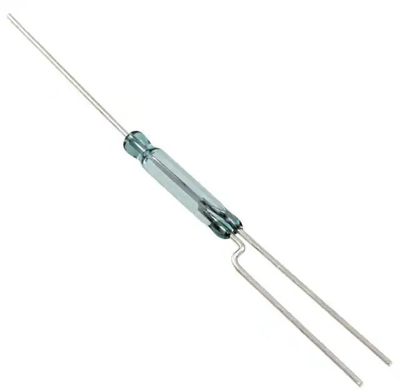

Reed switch, MDRR-DT-10-15-F, Littelfuse

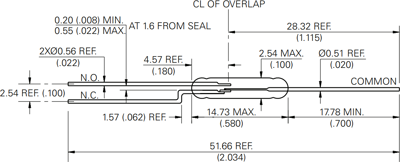

The MDRR-DT-10-15-F is a miniature changeover switch with a 14.73 mm long x 2.54 mm diameter glass envelope, capable of switching 175 Vdc at 5 W. It has insulation resistance of 109 ohms minimum, and contact resistance less than 100 milli-ohms.
Features
- Miniature SPDT changeover switch
- Zero operating power required for contact closure
- Excellent for switching microcontroller logic level loads
Applications
- Position sensing
- Reed relays
- Industrial controls
- Office equipments
- Home appliances
- Security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact resistance | 100 mΩ | |
| Breaking capacity | 5 W | |
| Switching Voltage (DC) | 175 V | |
| Connection | axial | |
| Latching switching function | 1 Form C (NO/NC) | |
| diameter | 2.54 mm | |
| switching current | 0.25 A | |
| Assembly | THT | |
| Switching Voltage (AC) | 120 V | |
| Version | glass | |
| Product type | reed switche | |
| Length | 51.66 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
