59170-1-T-00-A | Littelfuse
Reed switche, 11.43 x 2.29 x 2.29 mm, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59170-1-T-00-A
Unit Price (€ / pc.)
3.1059 € *
Available: 2,338 pcs.
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
10 pcs.
2.7251 €
100 pcs.
2.3919 €
250 pcs.
2.2967 €
1000 pcs.
2.1539 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature overmolded reed switch, 59170-1-T-00-A, Littelfuse
The 59170-1-T-00-A is a miniature overmolded reed switch with. It has normally open contact, capable of switching up to 200Vdc at 10W.
Features
- Two-part, magnetically-operated proximity sensor
- Solder reflow capable
- Thermoset overmolded material
- Suitable for pick and place
Applications
- Position and limit switching
- Security system switch
- Door and window proximity
- Automotive electronics
- Anti-Tamper detection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact resistance | 100 mΩ | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 200 V | |
| Connection | axial | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.5 A | |
| Assembly | PCB mounting | |
| Detecting distance | 6.5 mm | |

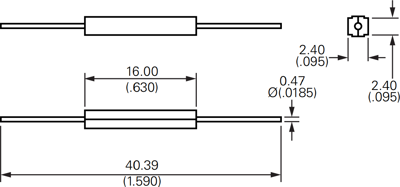

| Version | 11.43 x 2.29 x 2.29 mm | |
| Product type | reed switche | |
| Length | 40.39 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
