59165-1-S-00-A | Littelfuse

Reed switche, 16 x 2.4 x 2.4 mm, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59165-1-S-00-A

Order No.: 29G2354
EAN: 4099889447989
MPN:
59165-1-S-00-A
Series: 59165

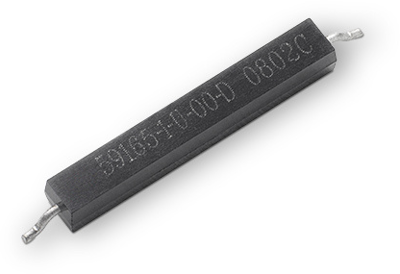

59165-1-S-00-A Littelfuse Proximity Switches, Reed switches Image 1
59165-1-S-00-A Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1,009.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
1.2614 €

Miniature overmolded reed sensor, 59165-1-S-00-A, Littelfuse

The 59165-1-S-00-A is a miniature overmolded reed sensor with straight, staple-form, or gull-wing leads. Provided with normally open contacts. Capable of switching up to 200 Vdc at 10 W. Well suited for position and limit sensing, security, and door/window alarm systems.

Features

  • Two-part, magnetically-operated proximity sensor
  • Molded stand-off to allow board washing
  • Customer-defined sensitivity
  • Suitable for reflow soldering

Applications

  • Position and limit switching
  • Security
  • Door switch
Technical specifications
Filter Property Value
Switching Voltage (AC) 140 V
Detecting distance 7.5 mm
Contact resistance 200 mΩ
Breaking capacity 10 W
Assembly PCB mounting
switching current 0.5 A
Length 40.39 mm
Product type reed switche
Version 16 x 2.4 x 2.4 mm
Switching Voltage (DC) 200 V
Connection axial
Latching switching function 1 Form A (N/O)
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
