59140-1-T-02-A | Littelfuse
Reed switche, black, Surface mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59140-1-T-02-A
Unit Price (€ / pc.)
5.0337 € *
Available: 89 pcs.
Total Price:
5.03 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0337 €
10 pcs.
3.5938 €
*incl. VAT plus shipping costs
Subject to prior sale

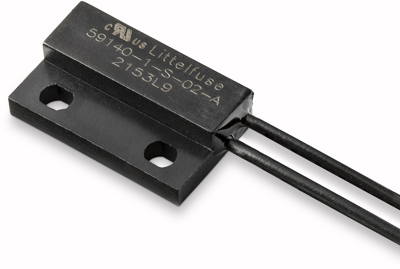

Flange mounting sensor, 59140-1-T-02-A, Littelfuse
The 59140-1-T-02-A is a miniature flange mounting reed sensor occupying only 3.22cm² board space with a choice of normally open, normally open high voltage, normally closed or changeover contacts. It’s case design enables screw or adhesive mounting and the wires exit from top right hand side.
Features
- Magnetically operated position sensor
- RoHS compliant
- No standby power requirement
- Excellent for switching microcontroller logic level loads
Applications
- Position and limit sensing
- Security system switch
- Linear actuators
- Door switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reed sensor | |
| Version | black | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 200 V | |
| switching current | 0.5 A | |
| Contact resistance | 200 mΩ | |
| Detecting distance | 9.5 mm | |
| Assembly | Surface mounting | |
| Connection | stranded wires | |

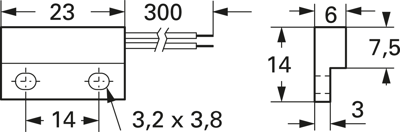

| Length | 23 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
