59140-1-S-02-A | Littelfuse

Reed switche, black, Surface mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59140-1-S-02-A

Order No.: 29G3106
EAN: 4099889448153
MPN:
59140-1-S-02-A
Series: 59140

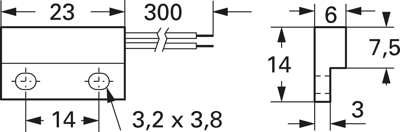

59140-1-S-02-A Littelfuse Proximity Switches, Reed switches Image 1

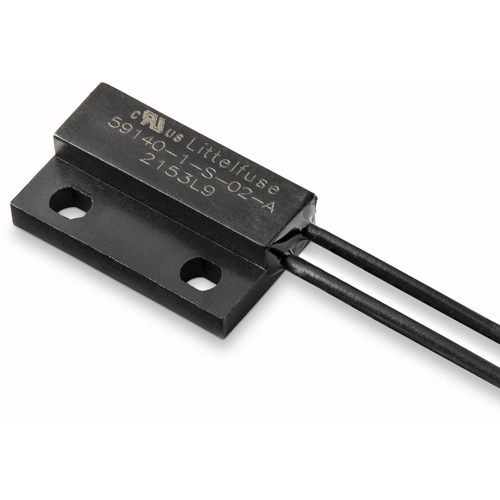

59140-1-S-02-A Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
5.2360 € *
Available: 287 pcs.
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2360 €
10 pcs.
3.7366 €
100 pcs.
3.1892 €
*incl. VAT plus shipping costs
Subject to prior sale

Flange mounting sensor, 59140-1-S-02-A, Littelfuse

The 59140-1-S-02-A is a miniature flange mounting reed sensor occupying only 3.22cm² board space with a choice of normally open, normally open high voltage, normally closed or changeover contacts. It’s case design enables screw or adhesive mounting and the wires exit from top right hand side.

Features

  • Magnetically operated position sensor
  • RoHS compliant
  • No standby power requirement
  • Excellent for switching microcontroller logic level loads

Applications

  • Position and limit sensing
  • Security system switch
  • Linear actuators
  • Door switch
Technical specifications
Filter Property Value
Product type reed sensor
Length 23 mm
Switching Voltage (DC) 200 V
Detecting distance 11.5 mm
Switching Voltage (AC) 140 V
Degree of protection (IP) IP67
Connection cable, PVC 24 AWG, 0.3 m
Version black
Contact resistance 200 mΩ
Assembly Surface mounting
Breaking capacity 10 W
switching current 0.5 A
Latching switching function 1 Form A (N/O)
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
