59140-010 | Littelfuse
Reed switche, black, Surface mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59140-010
Unit Price (€ / pc.)
5.1646 € *
Available: 200 pcs.
Available in 4 Days: 365 pcs. - if ordered today
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1646 €
10 pcs.
3.6771 €
100 pcs.
3.1416 €
500 pcs.
2.7370 €
1000 pcs.
2.4871 €
*incl. VAT plus shipping costs
Subject to prior sale

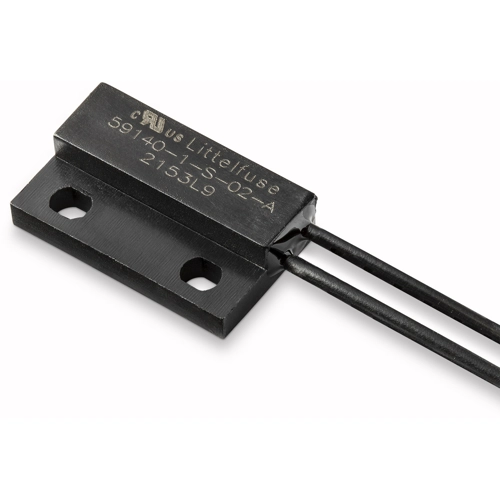

Flange mounting sensor, 59140-010, Littelfuse

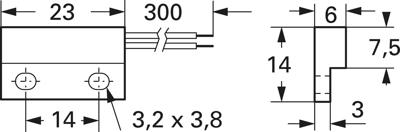

The 59140-010 is a miniature flange mounting reed sensor occupying only 3.22cm² board space with a choice of normally open, normally open high voltage, normally closed or changeover contacts. It’s case design enables screw or adhesive mounting and the wires exit from top right hand side.
Features
- Magnetically operated position sensor
- RoHS compliant
- No standby power requirement
- Excellent for switching microcontroller logic level loads
Applications
- Position and limit sensing
- Security system switch
- Linear actuators
- Door switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 200 V | |
| Length | 23 mm | |
| Assembly | Surface mounting | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.5 A | |
| Breaking capacity | 10 W | |
| Detecting distance | 7.5-11.5 mm | |
| Connection | stranded wires | |
| Product type | reed sensor | |
| Contact resistance | 200 mΩ | |
| Version | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
