59135-020 | Littelfuse
Reed switche, 28.57 x 19.05 x 6.35 mm, Surface mounting, 1 Form A (N/O), 10 W, 300 V (DC), 0.5 A, 59135-020
Unit Price (€ / pc.)
10.4839 € *
Available: 517 pcs.
Total Price:
10.48 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4839 €
10 pcs.
7.4851 €
100 pcs.
6.4022 €
*incl. VAT plus shipping costs
Subject to prior sale

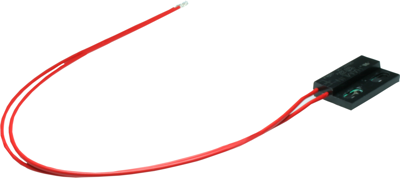

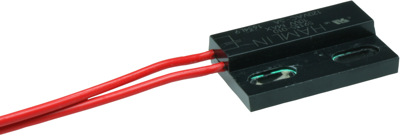

High temperature flange mounting reed sensor , 59135-020, Littelfuse
The 59135-020 is a high temperature flange mounting reed sensor with a choice of normally open, normally closed or change-over contacts. It is rated for operation up to 150 °C and capable of switching up to 265 Vac / 300 Vdc at 10 VA.
Features
- Non-contact switching solution for wet and harsh environments
- Housing design for optimum adjustability
- Thermoset overmold material
- No leakage current in ‘open’ state−ideal for battery powered IoT applications
Applications
- Security and access control
- Factory automation
- Process equipment
- Major appliances
- Small appliances
- Proximity and limit sensing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 300 V | |
| Length | 28.57 mm | |
| Assembly | Surface mounting | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.5 A | |
| Breaking capacity | 10 W | |
| Detecting distance | 15-19 mm | |
| Connection | stranded wires | |
| Degree of protection (IP) | IP67 | |
| Product type | reed sensor | |
| Contact resistance | 200 mΩ | |

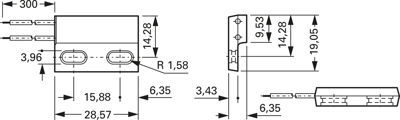

| Version | 28.57 x 19.05 x 6.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
