59085-4-T-02-F | Littelfuse
Reed switche, magnet, screw mounting, 1 Form B (N/C), 10 W, 200 V (DC), 0.5 A, 59085-4-T-02-F
Unit Price (€ / pc.)
4.7957 € *
Standard delivery time from the manufacturer is: 17 Weeks
Proximity switch, 59085-4-T-02-F, LITTELFUSE

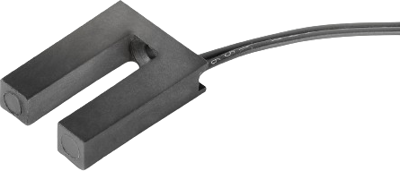

A reed vane sensor with an integral actuator magnet, and normally closed contacts. Its actuation occurs when a suitable low-carbon steel vane passes through the slot between the magnet and switch. Hermetically sealed, magnetically operated contacts continue to operate long after optical and other technologies fail due to contamination.
Features
- Sensor and magnet contained in single housing
- RoHS compliant
Applications
- Position and limit sensing
- Security system switch
- Linear actuators
- Industrial process control
- Shaft rotation sensing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | magnet | |
| switching current | 0.5 A | |
| Latching switching function | 1 Form B (N/C) | |
| Contact resistance | 200 mΩ | |
| Switching Voltage (AC) | 140 V | |
| Breaking capacity | 10 W | |
| Detecting distance | 1.4 mm | |
| Length | 25.4 mm | |
| Switching Voltage (DC) | 200 V | |
| Connection | stranded wires | |
| Product type | reed switche | |
| Assembly | screw mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
