59085-1-T-02-A | Littelfuse

Reed switche, magnet, screw mounting, 1 Form A (N/O), 5 W, 175 V (DC), 0.25 A, 59085-1-T-02-A

Order No.: 75P2277
EAN: 4099891891428
MPN:
59085-1-T-02-A
Series: 59085

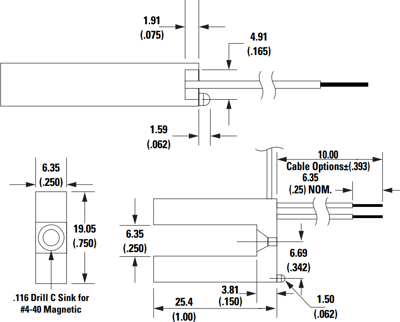

59085-1-T-02-A Littelfuse Proximity Switches, Reed switches Image 1

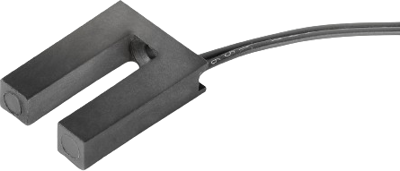

59085-1-T-02-A Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
7.7707 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
3,885.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
7.7707 €

Proximity switch, 59085-1-T-02-A, LITTELFUSE

A reed vane sensor with an integral actuator magnet, and normally open contacts. Its actuation occurs when a suitable low-carbon steel vane passes through the slot between the magnet and switch. Hermetically sealed, magnetically operated contacts continue to operate long after optical and other technologies fail due to contamination.

Features

  • Sensor and magnet contained in single housing
  • RoHS compliant

Applications

  • Position and limit sensing
  • Security system switch
  • Linear actuators
  • Industrial process control
  • Shaft rotation sensing
Technical specifications
Switching Voltage (AC) 120 V
Detecting distance 1.4 mm
Contact resistance 200 mΩ
Breaking capacity 5 W
Assembly screw mounting
switching current 0.25 A
Length 25.4 mm
Product type reed switche
Version magnet
Switching Voltage (DC) 175 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Country of origin MX
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
