59070-2-T-02-A | Littelfuse

Reed switche, magnet, built-in mounting M8, 1 Form A (N/O), 10 W, 300 V (DC), 0.4 A, 59070-2-T-02-A

Order No.: 75P2270
EAN: 4099891891350
MPN:
59070-2-T-02-A
Series: 59070

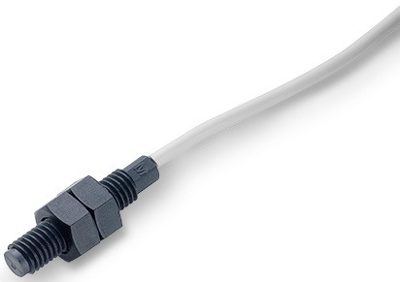

59070-2-T-02-A Littelfuse Proximity Switches, Reed switches Image 1

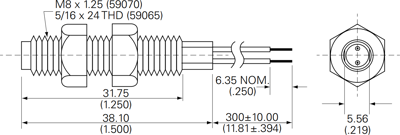

59070-2-T-02-A Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
3.7128 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1,856.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
3.7128 €

Proximity switch, 59070-2-T-02-A, LITTELFUSE

A small plastic barrel sensor, with normally open and high voltage contacts, allows for simple installation and adjustment using the supplied retaining nuts. Excellent for switching microcontroller logic level loads. It operates through non-ferrous materials such as wood, plastic or aluminium.

Features

  • Two-part magnetically operated proximity sensor
  • Threaded barrel with retaining nuts

Applications

  • Position and limit sensing
  • Security system switch
  • Industrial process control
  • Linear actuators
Technical specifications
Switching Voltage (AC) 265 V
Detecting distance 6.6 mm
Contact resistance 200 mΩ
Breaking capacity 10 W
Assembly built-in mounting M8
switching current 0.4 A
Length 38.1 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 300 V
Connection cable, PVC 24 AWG, 0.3 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin CN
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
