59070-010 | Littelfuse

Reed switche, magnet, built-in mounting M8, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59070-010

Order No.: 29G2320
EAN: 4099889447934
MPN:
59070-010
Series: 59070

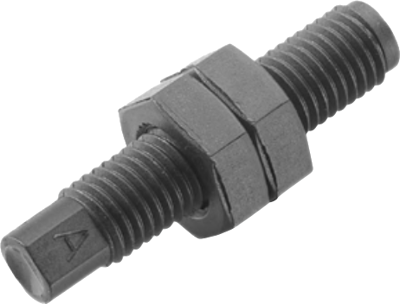

59070-010 Littelfuse Proximity Switches, Reed switches Image 1

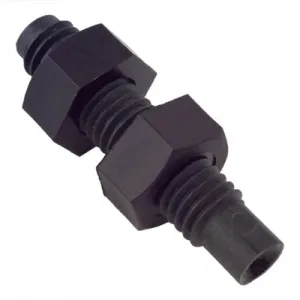

59070-010 Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
6.5569 € *
Available: 90 pcs.
Available in 4 Days: 400 pcs.
Leadtime: 13 Weeks **
Total Price:
6.56 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5569 €
10 pcs.
4.6767 €
100 pcs.
4.0103 €
500 pcs.
3.4748 €
1000 pcs.
3.1535 €
*incl. VAT plus shipping costs
**Subject to prior sale

Threaded barrel reed sensor, 59070-010, Littelfuse

A small, plastic barrel sensor with an M8 x 1.25mm pitch thread, 38.1mm long with a choice of normally open, normally open high-voltage, normally closed or changeover contacts. Capable of switching up to 265 Vac / 300 Vdc at 10 VA. Available with a range of sensitivity, cable length and connector options. Ideally suited for position and limit sensing, security, linear actuator and industrial process applications.

Features

  • Magnetically-operated proximity sensor
  • Plastic threaded barrel with retaining nuts
  • Customer-defined sensitivity

Applications

  • Position and limit switching
  • Security
  • Industrial process control
  • Linear actuators
Technical specifications
Switching Voltage (AC) 140 V
Detecting distance 4.5-9 mm
Contact resistance 200 mΩ
Breaking capacity 10 W
Assembly built-in mounting M8
switching current 0.5 A
Length 38.1 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 200 V
Connection cable, PVC 24 AWG, 0.3 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin MX
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
