MMIX2F60N50P3 | Littelfuse

Littelfuse N channel HiPerFET power MOSFET, 500 V, 30 A, SMPD, MMIX2F60N50P3

Order No.: 74P1144
EAN: 4099891780098
MPN:
MMIX2F60N50P3
Series: Polar3
Littelfuse
MMIX2F60N50P3 Littelfuse MOSFETs

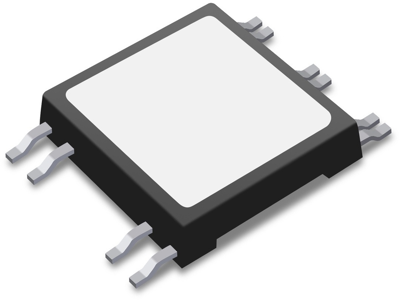

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 500 V
Max. current 30 A
drain-source on resistance RDS (on) max @VGS=10V 120 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
40.2696 € *
Standard delivery time from the manufacturer is: 35 Weeks
Total Price:
12,080.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
40.2696 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, MMIX2F60N50P3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and advantages such as high power density, easy mounting and space savings.

Features

  • Silicon chip on direct-copper-bond substrate
  • Isolated substrate
  • Excellent thermal transfer
  • Increased temperature and power cycling capability
  • Very high current handling capability
  • Fast intrinsic diode
  • Very low RDS(on)

Applications

  • DC-DC converters and off-line UPS
  • Primary - side switch
  • High speed power switching applications
Technical specifications
Enclosure SMPD
drain-source on resistance RDS (on) max @VGS=10V 120 mΩ
max. Voltage 500 V
Power loss 320 W
Gate Charge Qg @10V (nC) 9.6x10<sup>-8</sup> C
Assembly SMD
Max. current 30 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin PH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
