MMIX1G120N120A3V1 | Littelfuse

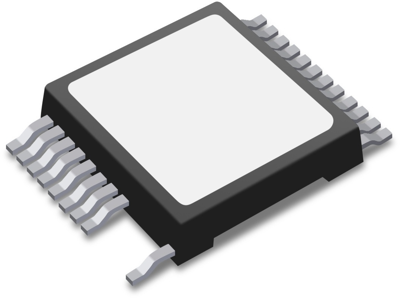

Littelfuse IGBT module, 220 A, SMPDU, MMIX1G120N120A3V1
Order No.: 74P1134
EAN: 4099891779993
MPN:
MMIX1G120N120A3V1
Unit Price (€ / pc.)
62.5345 € *
Standard delivery time from the manufacturer is: On Request
IGBT, MMIX1G120N120A3V1, LITTELFUSE
Ultra-low-Vsat PT IGBT for 3 kHz switching, optimized for low conduction losses, with high current handling capability and advantages such as high power density and low gate drive requirement.
Features
- Silicon chip on direct-copper-bond substrate
- Isolated mounting surface
- Square RBSOA
- Anti-parallel ultra fast diode
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
- Inrush current protection circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SMPDU | |
| Assembly | SMD | |
| Max. current | 220 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
