MMIX1F420N10T | Littelfuse

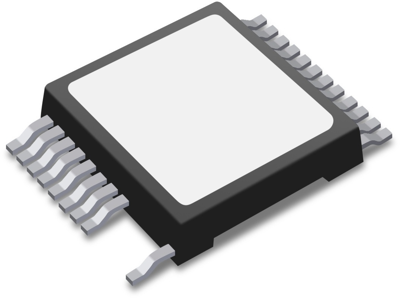

Littelfuse N channel GigaMOS trench HiperFETT power MOSFET, 100 V, 334 A, SMPD, MMIX1F420N10T
Order No.: 74P1132
EAN: 4099891779979
MPN:
MMIX1F420N10T
Unit Price (€ / pc.)
43.4112 € *
Standard delivery time from the manufacturer is: 25 Weeks
MOSFET, MMIX1F420N10T, LITTELFUSE
A power MOSFET with N-Channel enhancement mode, avalanche rating, and advantages such as high power density, easy mounting and space savings.
Features
- Silicon chip on direct-copper-bond substrate
- Isolated substrate
- Excellent thermal transfer
- Increased temperature and power cycling capability
- Very high current handling capability
- Fast intrinsic diode
- Very low RDS(on)
Applications
- DC-DC converters and off-line UPS
- Primary - side switch
- High speed power switching applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SMPD | |
| drain-source on resistance RDS (on) max @VGS=10V | 2.6 mΩ | |
| max. Voltage | 100 V | |
| Power loss | 680 W | |
| Gate Charge Qg @10V (nC) | 0.00000067 C | |
| Assembly | SMD | |
| Max. current | 334 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
