MMIX1F132N50P3 | Littelfuse

Littelfuse N channel HiPerFET power MOSFET, 500 V, 63 A, SMPD, MMIX1F132N50P3

Order No.: 74P1126
EAN: 4099891779917
MPN:
MMIX1F132N50P3
Series: Polar3
Littelfuse
MMIX1F132N50P3 Littelfuse MOSFETs

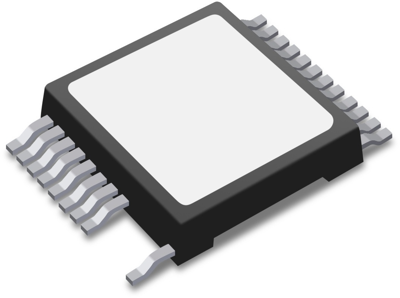

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 500 V
Max. current 63 A
drain-source on resistance RDS (on) max @VGS=10V 43 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
44.9582 € *
Standard delivery time from the manufacturer is: 44 Weeks
Total Price:
13,487.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
44.9582 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, MMIX1F132N50P3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and advantages such as easy mounting and space savings.

Features

  • Silicon chip on direct-copper-bond substrate
  • High power dissipation
  • Isolated mounting surface
  • Low package inductance
  • Fast intrinsic rectifier
  • Low RDS(on)

Applications

  • DC-DC converters
  • Battery chargers
  • Switch-mode and resonant-mode power supplies
  • Uninterruptible power supplies (UPS)
  • AC motor drives
  • High speed power switching applications
Technical specifications
Enclosure SMPD
drain-source on resistance RDS (on) max @VGS=10V 43 mΩ
max. Voltage 500 V
Power loss 520 W
Gate Charge Qg @10V (nC) 0.00000025 C
Assembly SMD
Max. current 63 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin PH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
