IXTY4N65X2 | Littelfuse

Littelfuse N channel power MOSFET, 650 V, 4 A, TO-252, IXTY4N65X2

Order No.: 74P1125
EAN: 4099891779900
MPN:
IXTY4N65X2
Series: X2-Class

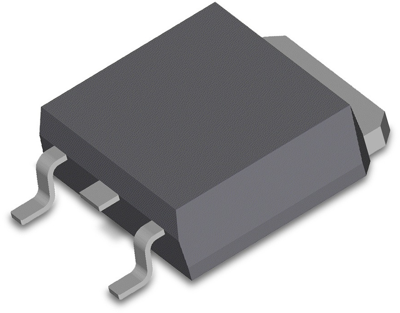

IXTY4N65X2 Littelfuse MOSFETs
Image may differ
Unit Price (€ / pc.)
1.7731 € *
Available in 4 Days: 340 pcs. - if ordered today
Total Price:
620.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
350 pcs.
1.7731 €

MOSFET, IXTY4N65X2, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • Low RDS(ON) and QG
  • Low package inductance

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • PFC circuits
  • AC and DC motor drives
  • Robotics and servo controls
Technical specifications
Filter Property Value
Enclosure TO-252
Gate Charge Qg @10V (nC) 8.3x10<sup>-9</sup> C
Version N channel
Power loss 80 W
max. operating temperature 150 °C
Assembly SMD
max. Voltage 650 V
min. operating temperature -55 °C
drain-source on resistance RDS (on) max @VGS=10V 850 mΩ
Max. current 4 A
Logistics
Property Value
Customs tariff number 85411000
Country of origin KR
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
