IXTT16N50D2 | Littelfuse

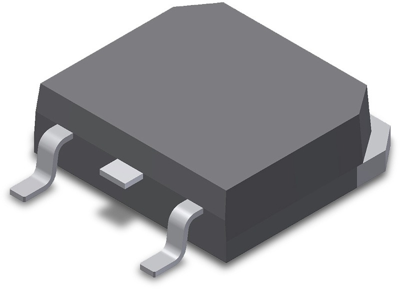

Littelfuse N channel depletion mode power MOSFET, 500 V, 16 A, TO-268S, IXTT16N50D2
Unit Price (€ / pc.)
19.5993 € *
Standard delivery time from the manufacturer is: 61 Weeks
MOSFET, IXTT16N50D2, LITTELFUSE
A power MOSFET with N-Channel depletion mode, with advantages such as high power density, easy mounting, and space savings.
Features
- Normally ON mode
- International standard package
- Molding epoxies meet UL 94 V-0 flammability classification
Applications
- Audio amplifiers
- Start-up circuits
- Protection circuits
- Ramp generators
- Current regulators
- Active loads
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-268S | |
| drain-source on resistance RDS (on) max @VGS=10V | 300 mΩ | |
| max. Voltage | 500 V | |
| Power loss | 695 W | |
| Gate Charge Qg @10V (nC) | 0.000000199 C | |
| Assembly | SMD | |
| Max. current | 16 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
