Littelfuse P-channel TrenchP power MOSFET, 50 V, 140 A, TO-220, IXTP140P05T

Order No.: 74P1122
EAN: 4099891779870
MPN:
IXTP140P05T
Littelfuse
IXTP140P05T Littelfuse MOSFETs

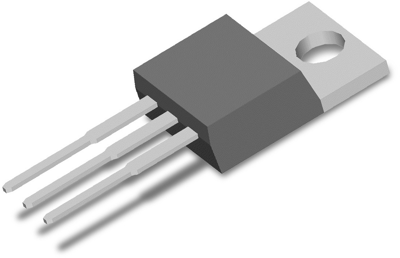

Image may differ
Print
Key Specification:
Version P-Kanal
max. Voltage 50 V
Max. current 140 A
drain-source on resistance RDS (on) max @VGS=10V 9 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.9976 € *
Available: 0 pcs.
Leadtime: 44 Weeks **
Total Price:
1,799.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
5.9976 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXTP140P05T, LITTELFUSE

A power MOSFET with P-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • Extended FBSOA
  • Fast intrinsic diode
  • Low RDS(ON) and QG

Applications

  • High-side switching
  • Push pull amplifiers
  • DC choppers
  • Automatic test equipment
  • Current regulators
  • Battery charger applications
Technical specifications
Version P-Kanal
drain-source on resistance RDS (on) max @VGS=10V 9 mΩ
Gate Charge Qg @10V (nC) 2x10<sup>-7</sup> C
Enclosure TO-220
max. Voltage 50 V
Max. current 140 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Power loss 298 W
Articles of same specification 0
Logistics
Country of origin KR
Customs tariff number 85412900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
