IXTK200N10L2 | Littelfuse

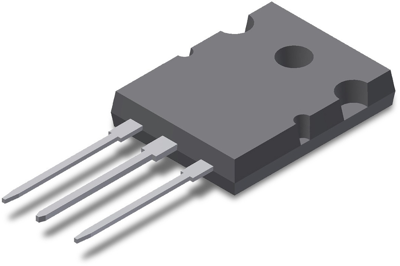

Littelfuse N channel LinearL2 power MOSFET, 100 V, 200 A, TO-264, IXTK200N10L2

Order No.: 74P1120
EAN: 4099891779856
MPN:
IXTK200N10L2
Series: L2
Littelfuse
IXTK200N10L2 Littelfuse MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 100 V
Max. current 200 A
drain-source on resistance RDS (on) max @VGS=10V 11 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
35.3668 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
10,610.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
35.3668 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXTK200N10L2, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • Designed for linear operation

Applications

  • Solid state circuit breakers
  • Soft start controls
  • Linear amplifiers
  • Programmable loads
  • Current regulators
Technical specifications
Enclosure TO-264
drain-source on resistance RDS (on) max @VGS=10V 11 mΩ
max. Voltage 100 V
Power loss 1040 W
Gate Charge Qg @10V (nC) 0.00000054 C
Assembly THT
Max. current 200 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85412900
Country of origin PH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
