IXTK140N30P | Littelfuse

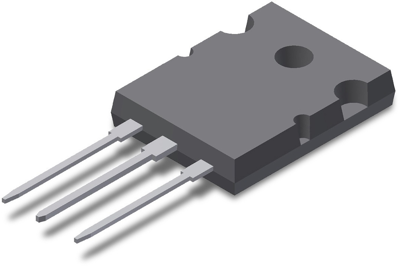

Littelfuse N channel power MOSFET, 300 V, 140 A, TO-264JD, IXTK140N30P
Unit Price (€ / pc.)
21.5628 € *
Available in 4 Days: 2,500 pcs. - if ordered today
MOSFET, IXTK140N30P, LITTELFUSE
A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.
Features
- International standard package
- Fast intrinsic diode
- Unclamped inductive switching (UIS) rated
- Low package inductance - easy to drive and to protect
Applications
- Switch-mode and resonant-mode power supplies
- DC-DC converters
- Laser drivers
- AC and DC motor drives
- Robotics and servo controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-264JD | |
| drain-source on resistance RDS (on) max @VGS=10V | 24 mΩ | |
| max. Voltage | 300 V | |
| Power loss | 1040 W | |
| Gate Charge Qg @10V (nC) | 0.000000185 C | |
| Assembly | THT | |
| Max. current | 140 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
