IXTK140N20P | Littelfuse

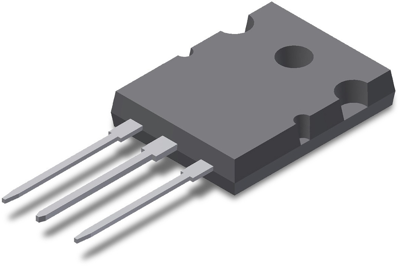

Littelfuse N channel power MOSFET, 200 V, 140 A, TO-264, IXTK140N20P
Unit Price (€ / pc.)
13.4351 € *
Standard delivery time from the manufacturer is: 39 Weeks
MOSFET, IXTK140N20P, LITTELFUSE
A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.
Features
- International standard package
- Unclamped inductive switching (UIS) rated
- Low package inductance - easy to drive and to protect
Applications
- Switch-mode and resonant-mode power supplies
- DC-DC converters
- Laser drivers
- AC and DC motor drives
- Robotics and servo controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-264 | |
| drain-source on resistance RDS (on) max @VGS=10V | 18 mΩ | |
| max. Voltage | 200 V | |
| Power loss | 800 W | |
| Gate Charge Qg @10V (nC) | 0.00000024 C | |
| Assembly | THT | |
| Max. current | 140 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
