IXTK120N65X2 | Littelfuse

Littelfuse N channel standard power MOSFET, 650 V, 120 A, TO-264K, IXTK120N65X2

Order No.: 74P1117
EAN: 4099891779825
MPN:
IXTK120N65X2
Series: X2-Class
Littelfuse
IXTK120N65X2 Littelfuse MOSFETs

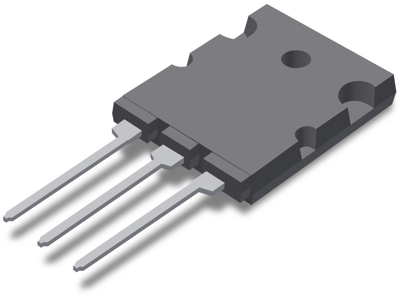

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 650 V
Max. current 120 A
drain-source on resistance RDS (on) max @VGS=10V 23 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
22.253 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
6,675.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
22.253 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXTK120N65X2, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • Low QG
  • Low package inductance - easy to drive and to protect

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • PFC circuits
  • AC and DC motor drives
  • Robotics and servo controls
Technical specifications
Enclosure TO-264K
drain-source on resistance RDS (on) max @VGS=10V 23 mΩ
max. Voltage 650 V
Power loss 1250 W
Gate Charge Qg @10V (nC) 0.00000023 C
Assembly THT
Max. current 120 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin KR
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
