IXTA6N100D2HV | Littelfuse

Littelfuse N channel depletion mode power MOSFET, 1000 V, 6 A, TO-263HV, IXTA6N100D2HV

Order No.: 74P1099
EAN: 4099891779641
MPN:
IXTA6N100D2HV
Littelfuse
IXTA6N100D2HV Littelfuse MOSFETs

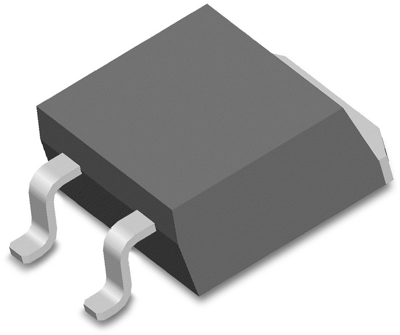

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 1000 V
Max. current 6 A
drain-source on resistance RDS (on) max @VGS=10V 2.2 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
13.0781 € *
Standard delivery time from the manufacturer is: 61 Weeks
Total Price:
3,923.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
13.0781 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXTA6N100D2HV, LITTELFUSE

A power MOSFET with N-Channel depletion mode, with advantages such as high power density, easy mounting, and space savings.

Features

  • High voltage package
  • High blocking voltage
  • Normally ON mode
  • High voltage package

Applications

  • Audio amplifiers
  • Start-up circuits
  • Protection circuits
  • Ramp generators
  • Current regulators
  • Active loads
Technical specifications
Enclosure TO-263HV
drain-source on resistance RDS (on) max @VGS=10V 2.2 Ω
max. Voltage 1000 V
Power loss 300 W
Gate Charge Qg @10V (nC) 9.5x10<sup>-8</sup> C
Assembly SMD
Max. current 6 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin KR
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
