IXTA3N150HV | Littelfuse

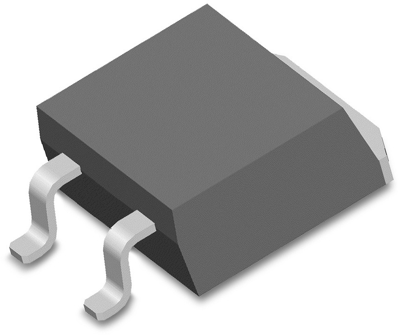

Littelfuse N channel standard power MOSFET, 1500 V, 3 A, TO-263HV, IXTA3N150HV
Order No.: 74P1096
EAN: 4099891779610
MPN:
IXTA3N150HV
Unit Price (€ / pc.)
9.3534 € *
Standard delivery time from the manufacturer is: 61 Weeks
MOSFET, IXTA3N150HV, LITTELFUSE
A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.
Features
- High voltage package
- Fast intrinsic diode
- Molding epoxies meet UL 94 V-0 flammability classification
- High blocking voltage
Applications
- High voltage power supplies
- Capacitor discharge applications
- Pulse circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-263HV | |
| drain-source on resistance RDS (on) max @VGS=10V | 7.3 Ω | |
| max. Voltage | 1500 V | |
| Power loss | 250 W | |
| Gate Charge Qg @10V (nC) | 3.86x10<sup>-8</sup> C | |
| Assembly | SMD | |
| Max. current | 3 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
