IXFY36N20X3 | Littelfuse

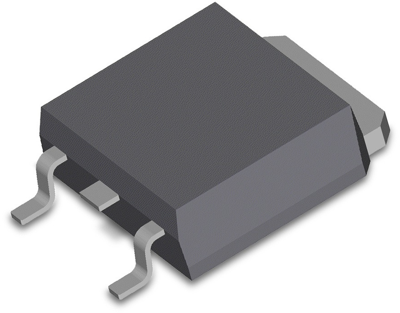

Littelfuse N channel HiPerFET power MOSFET, 200 V, 36 A, TO-252, IXFY36N20X3

Order No.: 74P1085
EAN: 4099891779504
MPN:
IXFY36N20X3
Series: X3-Class
Littelfuse
IXFY36N20X3 Littelfuse MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 200 V
Max. current 36 A
drain-source on resistance RDS (on) max @VGS=10V 45 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.332 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
1,166.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
350 pcs.
3.332 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXFY36N20X3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • Low RDS(ON) and QG
  • Low package inductance

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • PFC circuits
  • AC and DC motor drives
  • Robotics and servo controls
Technical specifications
Enclosure TO-252
drain-source on resistance RDS (on) max @VGS=10V 45 mΩ
max. Voltage 200 V
Power loss 170 W
Gate Charge Qg @10V (nC) 2.1x10<sup>-8</sup> C
Assembly SMD
Max. current 36 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin KR
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
