IXFP80N25X3 | Littelfuse

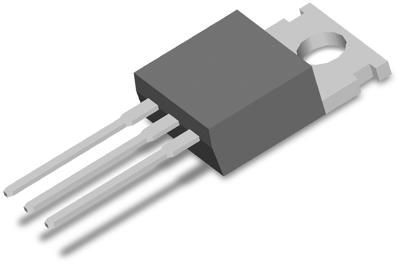

Littelfuse N channel HiPerFET power MOSFET, 250 V, 80 A, TO-220, IXFP80N25X3

Order No.: 74P1074
EAN: 4099891779399
MPN:
IXFP80N25X3
Series: X3-Class
Littelfuse
IXFP80N25X3 Littelfuse MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 250 V
Max. current 80 A
drain-source on resistance RDS (on) max @VGS=10V 16 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
7.3542 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,206.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
7.3542 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXFP80N25X3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • Low RDS(ON) and QG
  • Low package inductance

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • PFC circuits
  • AC and DC motor drives
  • Robotics and servo controls
Technical specifications
Enclosure TO-220
drain-source on resistance RDS (on) max @VGS=10V 16 mΩ
max. Voltage 250 V
Power loss 390 W
Gate Charge Qg @10V (nC) 8.3x10<sup>-8</sup> C
Assembly THT
Max. current 80 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin KR
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
