IXFN180N20 | Littelfuse

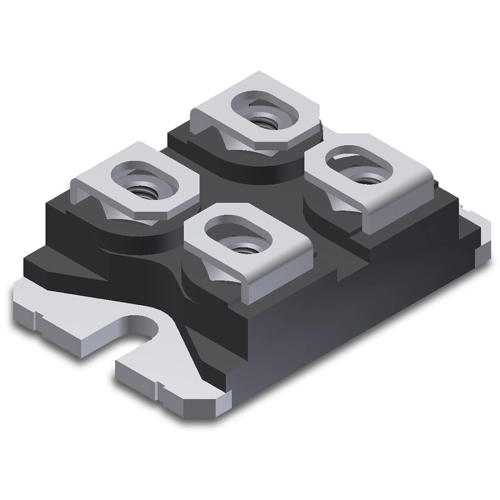

Littelfuse N channel HiPerFET power MOSFET, 200 V, 180 A, SOT-227, IXFN180N20
Order No.: 74P1016
EAN: 4099891778811
MPN:
IXFN180N20
Unit Price (€ / pc.)
52.955 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
MOSFET, IXFN180N20, Littelfuse
IXFN180N20 offers both hard switching and resonant mode applications, offering low gate charge and excellent ruggedness with a fast intrinsic diode.
Features
- High current handling capability
- Avalanche rated
- Low package inductance
- Fast intrinsic diode
- Easy to mount
- Space saving
- High power density
Applications
- DC-DC converters
- Battery chargers
- DC choppers
- AC motor drives
Technical specifications
| max. Voltage | 200 V | |
| Power loss | 700 W | |
| Assembly | screw mounting | |
| Enclosure | SOT-227 | |
| Max. current | 180 A | |
| Version | N channel | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Gate Charge Qg @10V (nC) | 6.6x10<sup>-7</sup> C | |
| drain-source on resistance RDS (on) max @VGS=10V | 12.5 mΩ |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
