IXFK150N30X3 | Littelfuse

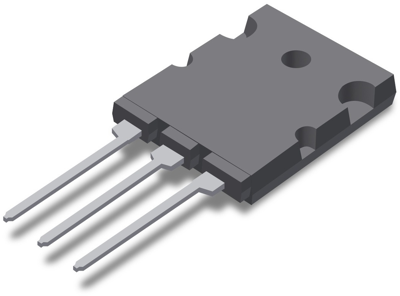

Littelfuse N channel HiPerFET power MOSFET, 300 V, 150 A, TO-264K, IXFK150N30X3

Order No.: 74P0998
EAN: 4099891778637
MPN:
IXFK150N30X3
Series: X3-Class
Littelfuse
IXFK150N30X3 Littelfuse MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 300 V
Max. current 150 A
drain-source on resistance RDS (on) max @VGS=10V 8.3 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
18.7187 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
5,615.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
18.7187 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXFK150N30X3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • Low RDS(ON) and QG
  • Low package inductance

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • PFC circuits
  • AC and DC motor drives
  • Robotics and servo controls
Technical specifications
Enclosure TO-264K
Gate Charge Qg @10V (nC) 2.54x10<sup>-7</sup> C
Version N channel
Power loss 890 W
max. operating temperature 150 °C
Assembly THT
max. Voltage 300 V
min. operating temperature -55 °C
drain-source on resistance RDS (on) max @VGS=10V 8.3 mΩ
Max. current 150 A
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin KR
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
