IXFA22N60P3 | Littelfuse

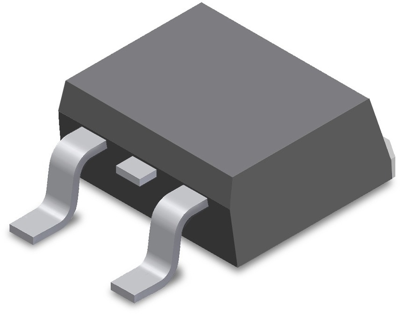

Littelfuse N channel HiPerFET power MOSFET, 600 V, 22 A, TO-263, IXFA22N60P3

Order No.: 74P0978
EAN: 4099891778439
MPN:
IXFA22N60P3
Series: Polar3
Littelfuse
IXFA22N60P3 Littelfuse MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 600 V
Max. current 22 A
drain-source on resistance RDS (on) max @VGS=10V 390 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.3435 € *
Standard delivery time from the manufacturer is: 35 Weeks
Total Price:
1,303.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
4.3435 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IXFA22N60P3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • Fast intrinsic rectifier
  • Low RDS(ON) and QG
  • Low package inductance

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • Laser drivers
  • AC and DC motor drives
  • Robotics and servo controls
Technical specifications
Enclosure TO-263
drain-source on resistance RDS (on) max @VGS=10V 390 mΩ
max. Voltage 600 V
Power loss 500 W
Gate Charge Qg @10V (nC) 3.8x10<sup>-8</sup> C
Assembly SMD
Max. current 22 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85411000
Country of origin KR
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
