SE-601-0D | Littelfuse
DC ground fault guard, 1 Form A (N/O) + 1 Form B (N/C), 24 V (DC), 240 V (AC), SE-601-0D
Unit Price (€ / pc.)
2,429.4564 € *
Standard delivery time from the manufacturer is: On Request

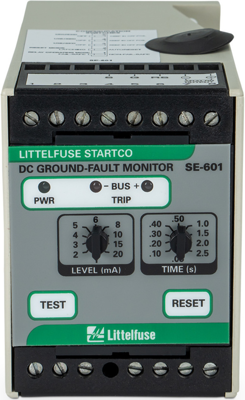

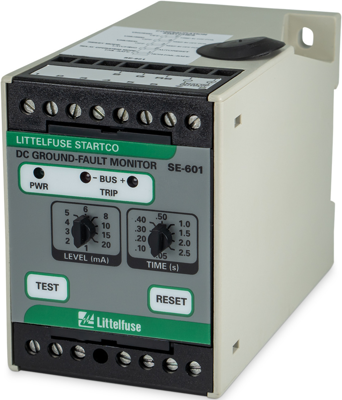

Ground-fault monitor, SE-601-0D, LITTELFUSE
The SE-601-0D is a microprocessor-based ground-fault relay for ungrounded dc systems. It provides sensitive ground-fault protection without the problems associated with nuisance tripping. Ground-fault current is sensed using an SE-GRM Series Ground-Reference Module-a resistor network that limits ground-fault current to 25 mA. The SE-601 is used on ungrounded dc systems ranging from industrial 24-Vdc control circuits to 1000-Vdc solar and transportation systems.
Features
- Adjustable pickup
- Adjustable time delay
- Non-volatile trip Memory
- Selectable contact operating mode
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 24 V | |
| Connection | screw connection | |
| Switching Voltage (AC) | 240 V | |
| Contact type | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | CA |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
