37416300410 | Littelfuse
Micro fuse TR5, 6.3 A, T, 250 V (AC), 50 A breaking capacity, 37416300410
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

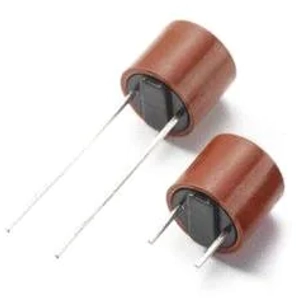

Micro fuse, 37416300410, Littelfuse
The 37416300410 is a time-lag fuse, it is used for surge-withstand and has a ceramic body cartridge that is designed to IEC specifications.
Features
- Reduced PCB space
- Direct solderable or plug-in
- Low internal resistance
- Shock safe casing
- Vibration resistant
Applications
- Battery chargers
- Industrial controllers
- Power supplies
- Consumer electronics
Technical specifications
| Rated current | 6.3 A | |
| diameter | 8.5 mm | |
| Tripping characteristics | T | |
| Length | 8 mm | |
| Breaking capacity | 50 A | |
| Rated voltage (AC) | 250 V | |
| Version | micro fuse | |
| Design | TR5 |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
