37216300431 | Littelfuse

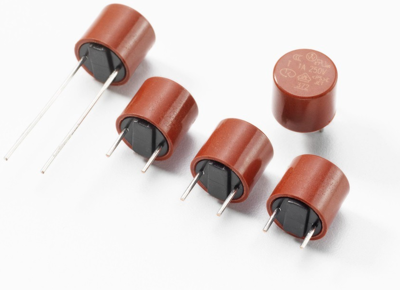

Micro fuse TR5, 6.3 A, T, 250 V (AC), 50 A breaking capacity, 37216300431
Unit Price (€ / pc.)
0.6902 € *
Standard delivery time from the manufacturer is: 10 Weeks
Fuse, 37216300431, Littelfuse
The 37216300431 is a TR5 Fuse, Time-Lag type, 250 V rated fuses, that are designed in accordance to IEC 60127-3.
Features
- Halogen free, Lead-free and RoHS compliant
- Reduced PCB space requirements
- Direct solderable or plug-in versions
- Low internal resistance
- Vibration resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 8.5 mm | |
| Rated voltage (AC) | 250 V | |
| Length | 8 mm | |
| Tripping characteristics | T | |
| Breaking capacity | 50 A | |
| Design | TR5 | |
| Version | micro fuse | |
| Rated current | 6.3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Bulk with 200 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
