36911000000 | Littelfuse
Micro fuse TE5, 1 A, T, 300 V (AC), 50 A breaking capacity, 36911000000
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 10 Weeks

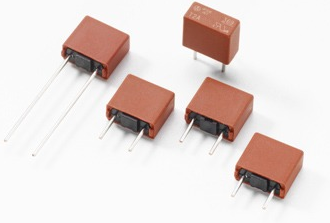

Micro fuse, 36911000000, Littelfuse
The 36911000000 is a time-lag fuse, it is used for surge-withstand and has a ceramic body cartridge that is designed to IEC specifications.
Features
- Reduced PCB space
- Direct solderable or plug-in
- Low internal resistance
- Shock safe casing
- Vibration resistant
Applications
- Electronic ballast
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 300 V | |
| Length | 8 mm | |
| Height | 8 mm | |
| Tripping characteristics | T | |
| Width | 4 mm | |
| Breaking capacity | 50 A | |
| Design | TE5 | |
| Version | micro fuse | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Ammopack with 1,400 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
