0606050.UXTHP | Littelfuse
Microfuse 10 x 32 mm, 50 A, 500 V (DC), 2 kA breaking capacity, 0606050.UXTHP
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
11.9357 € *
Standard delivery time from the manufacturer is: 15 Weeks

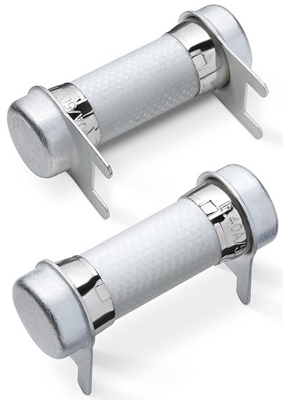

Fuse, 0606050.UXTHP, LITTELFUSE
High-current cartridge fuse is designed for over-current protection in high-voltage applications.
Features
- RoHS compliant, lead-free and halogen-free
- Through-hole mounting for circuit boards
Applications
- Uninterruptible power supply (UPS)
- Three-phase AC input for charging pile/electric vehicle supply equipment (EVSE)
- Power conversion equipment such as inverters, rectifiers, etc.
- Motor protection in elevator systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | microfuse | |
| Design | 10 x 32 mm | |
| Enclosure | THT | |
| Rated current | 50 A | |
| Rated voltage (DC) | 500 V | |
| Breaking capacity | 2 kA | |
| Length | 33.4 mm | |
| Height | 19.3 mm | |
| diameter | 12.25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361050 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
