0501012.WRA | Littelfuse

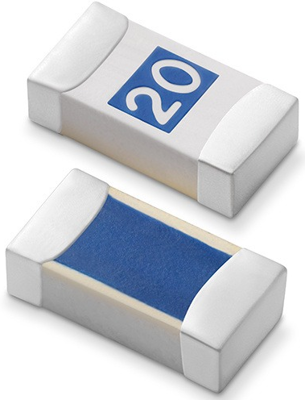

SMD fuse SMD 1206, 12 A, F, 32 V (DC), 150 A breaking capacity, 0501012.WRA
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 13 Weeks
Fuse, 0501012.WRA, LITTELFUSE
The AEC-qualified and halogen-free fuse is specifically tested to cater to the secondary circuit protection needs of compact auto electronics applications. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstanding capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Design | SMD 1206 | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 12 A | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 32 V | |
| Height | 0.84 mm | |
| Length | 3.2 mm | |
| Breaking capacity | 150 A | |
| Width | 1.63 mm |
Download
Logistics
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
