0463030.ER | Littelfuse

SMD fuse 3.05 x 10.08 mm, 30 A, FF, 100 V (DC), 250 V (AC), 100 A breaking capacity, 0463030.ER

Order No.: 75P0495
EAN: 4099891873608
MPN:
0463030.ER
Series: 463
0463030.ER Littelfuse Micro Fuses

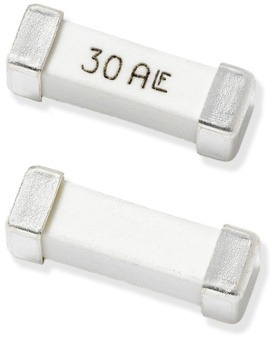

Image may differ
Unit Price (€ / pc.)
5.1646 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
12,911.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
5.1646 €

Fuse, 0463030.ER, LITTELFUSE

A fast-acting, very high-current fuse designed for high operating current applications. It offers superior thermal cycling endurance of 500 cycles with its low temperature rise and excellent temperature stability characteristics. It is ideal to be used in datacom and telecom equipment such as high-end servers, base stations, power supplies, and blade computing applications. Furthermore, it offers high-amp circuit protection, ultra-high interrupting ratings, and a small size and surface-mount form factor to help save space.

Features

  • High melting i2t
  • Enhanced thermal cycling endurance
  • RoHS compliant and halogen-free

Applications

  • High end servers/blade computing
  • Base station power supply
  • Voltage regulator module
  • Cooling fan system for PC server
  • Advance telecommunication computing architecture (ATCA) applications for cloud computing
  • Battery management system (industrial tools)
Technical specifications
Design 3.05 x 10.08 mm
Version SMD fuse
Enclosure SMD
Rated current 30 A
Tripping characteristics FF
Rated voltage (DC) 100 V
Height 3.05 mm
Length 10.08 mm
Rated voltage (AC) 250 V
Breaking capacity 100 A
Width 3.05 mm
Logistics
Customs tariff number 85361010
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
