0460.500ER | Littelfuse

SMD fuse 4.32 x 7.24 mm, 500 mA, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0460.500ER

Order No.: 75P0128
EAN: 4099891869939
MPN:
0460.500ER
Series: 460
0460.500ER Littelfuse Micro Fuses

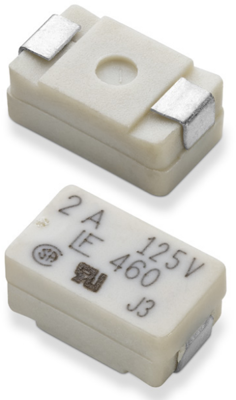

Image may differ
Unit Price (€ / pc.)
2.1658 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
5,414.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
2.1658 €

Fuse, 0460.500ER, LITTELFUSE

The fuse is based on PICO fuse through-hole technology, though it is offered in a surface-mount package.

Features

  • High inrush current withstand capability
  • Wide operating temperature range
  • Halogen free and RoHS compliant

Applications

  • Wireless basestation
  • Network equipment
  • Telecom equipment
Technical specifications
Filter Property Value
Tripping characteristics T
Width 4.32 mm
Rated voltage (AC) 125 V
Enclosure SMD
Rated voltage (DC) 125 V
Length 7.24 mm
Design 4.32 x 7.24 mm
Breaking capacity 50 A
Version SMD fuse
Height 3.05 mm
Rated current 500 mA
Logistics
Property Value
Country of origin PH
Customs tariff number 85361010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
