0456040.DR | Littelfuse
SMD fuse 4.45 x 12.5 mm, 40 A, FF, 60 V (DC), 600 A breaking capacity, 0456040.DR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.2241 € *
Standard delivery time from the manufacturer is: 17 Weeks
Fuse, 0456040.DR, LITTELFUSE

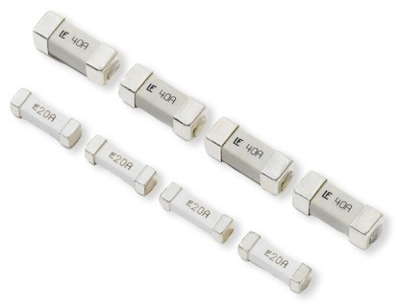

A small square surface mount fuse that is designed to support higher current requirements of various applications.
Features
- Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly
- RoHS compliant and halogen-free
Applications
- Voltage regulator module for PC server
- Cooling fan system for PC server
- Storage system power
- Basestation power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD fuse | |
| Design | 4.45 x 12.5 mm | |
| Enclosure | SMD | |
| Rated current | 40 A | |
| Tripping characteristics | FF | |
| Rated voltage (DC) | 60 V | |
| Breaking capacity | 600 A | |
| Length | 12.5 mm | |
| Width | 4.45 mm | |
| Height | 4.45 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361050 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
