0456020.ER | Littelfuse

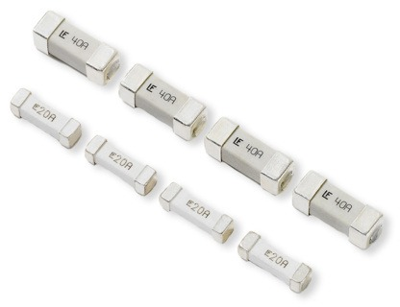

SMD fuse 3.05 x 10.08 mm, 20 A, FF, 65 V (DC), 125 V (AC), 100 A breaking capacity, 0456020.ER

Order No.: 75P0483
EAN: 4099891873486
MPN:
0456020.ER
Series: 456
0456020.ER Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
4.1531 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
10,382.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
4.1531 €

Fuse, 0456020.ER, LITTELFUSE

A small square surface mount fuse that is designed to support higher current requirements of various applications.

Features

  • Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly
  • RoHS compliant and halogen-free

Applications

  • Voltage regulator module for PC server
  • Cooling fan system for PC server
  • Storage system power
  • Basestation power supply
Technical specifications
Design 3.05 x 10.08 mm
Version SMD fuse
Enclosure SMD
Rated current 20 A
Tripping characteristics FF
Rated voltage (DC) 65 V
Height 3.05 mm
Length 10.08 mm
Rated voltage (AC) 125 V
Breaking capacity 100 A
Width 3.05 mm
Logistics
Customs tariff number 85361050
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
