0454.750MR | Littelfuse
SMD fuse 6.1 x 2.69 mm, 750 mA, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0454.750MR
Unit Price (€ / pc.)
1.2257 € *
Standard delivery time from the manufacturer is: 11 Weeks

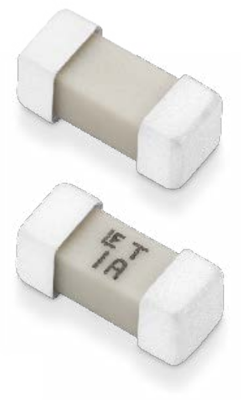

Fuse, 0454.750MR, LITTELFUSE
The fuse has enhanced inrush-withstand characteristics over the NANO² fast-acting fuse. The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open.
Features
- Small size
- Wide operating temperature range
- RoHS compliant and halogen-free
Applications
- Notebook PC
- LCD/PDP TV
- LCD monitor
- LCD/PDP panel
- LCD backlight inverter
- Portable DVD player
- Power supply
- Networking
- PC server
- Cooling fan system
- Storage system
- Telecom system
- Wireless basestation
- White goods
- Game console
- Office automation equipment
- Battery charging circuit protection
- Industrial equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Width | 2.69 mm | |
| Rated voltage (AC) | 125 V | |
| Enclosure | SMD | |
| Rated voltage (DC) | 125 V | |
| Length | 6.1 mm | |
| Design | 6.1 x 2.69 mm | |
| Breaking capacity | 50 A | |
| Version | SMD fuse | |
| Height | 2.69 mm | |
| Rated current | 750 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
