0451010.NRL | Littelfuse
SMD fuse 6.1 x 2.69 mm, 10 A, FF, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0451010.NRL
Unit Price (€ / pc.)
1.7612 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

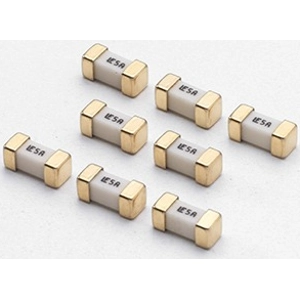

SMD-Fuse, 0451010.NRL, Littelfuse
The 0451010.NRL is a SMT fuse that is very small, Wire-in-Air (WIA) square shape surface mount fuse that was designed for secondary side circuit over-current protection applications.
Features
- Wide operating temperature range
- Wide range of current
- Very fast-acting
- RoHS-compatible and halogen free
Applications
- LCD backlight inverter
- Wireless basestation
- Office automation equipment
- Battery charging circuit protection
Technical specifications
| Design | 6.1 x 2.69 mm | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 10 A | |
| Tripping characteristics | FF | |
| Rated voltage (DC) | 125 V | |
| Height | 2.69 mm | |
| Length | 6.1 mm | |
| Rated voltage (AC) | 125 V | |
| Breaking capacity | 50 A | |
| Width | 2.69 mm |
Download
Logistics
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
